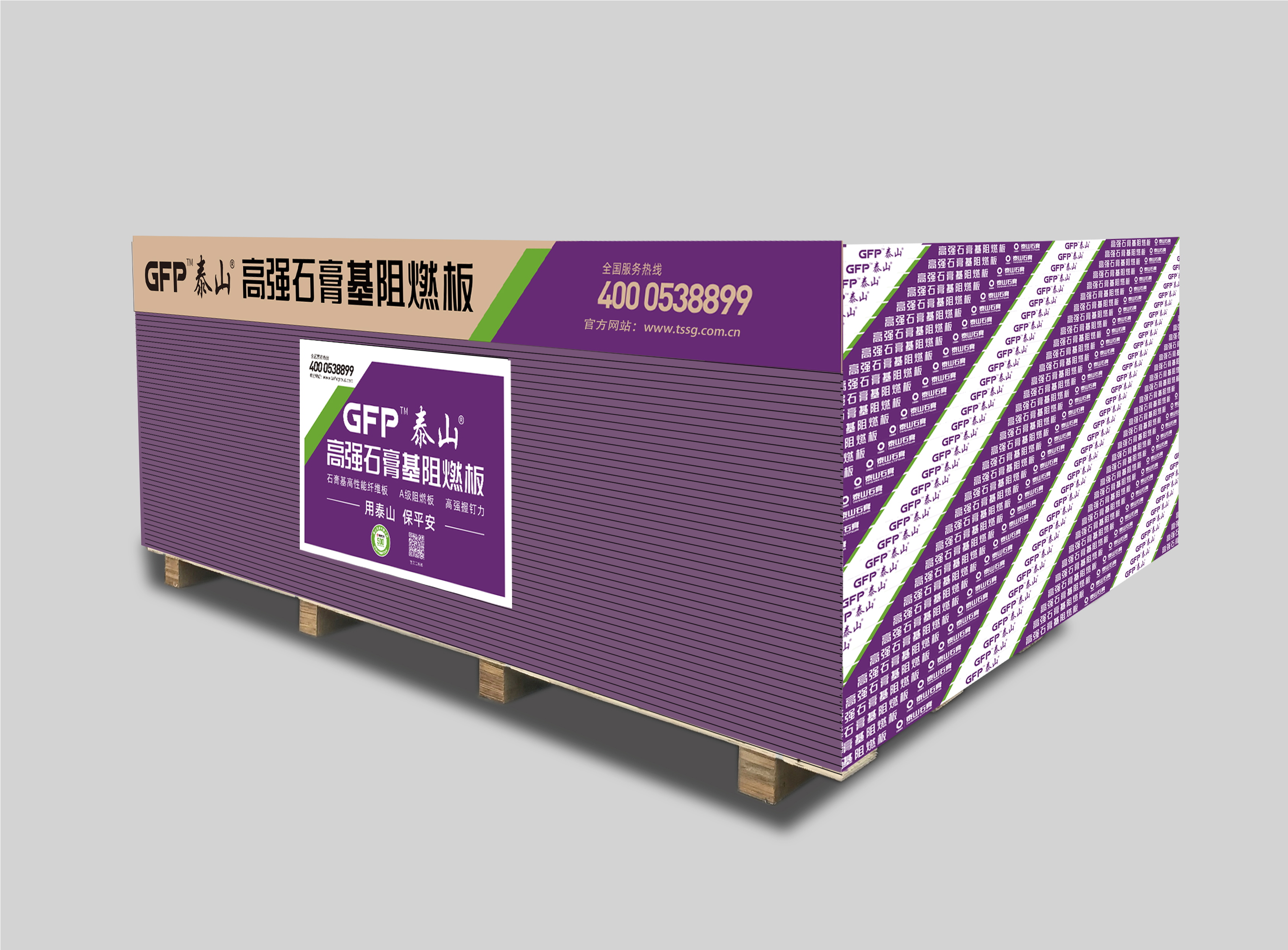

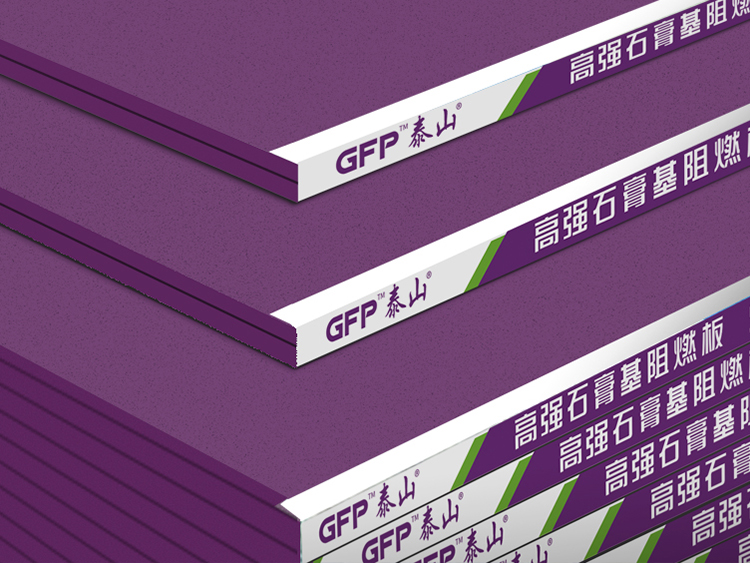

High Strength Gypsum Based Flame Retardant Board
product name:
Product Size:
2400*1200*10/12/15mm
2440*1220*10/12/15mm
* Can be customized according to customer requirements
Packing Quantity:
Thickness 10 mm 80 sheets/piece
Thickness 12mm 60 sheets/piece
Thickness 15 mm 50 sheets/piece
Implementation standard:
GB/T 9775-2008 "Plasterboard"
Q/0900 TTH006-2021"Gypsum-based Flame Retardant Board"
High Strength, high density, high grip strength
GFP Taishan high-strength gypsum-based fire-retardant board (Class A fire-retardant)
GFP?Taishan?High-strength gypsum-based Flame Retardant Board is a new type of gypsum-based high-performance fiberboard developed by the company. Through the unique gel-based hard board technology, high-strength Tissue Paper, high-strength Gypsum and Gao Qiang fiber reinforced material are perfectly integrated, and the product has high compactness, the utility model has the advantages of high strength, strong nail holding force, good fire resistance and stability, remarkable sound insulation effect, anti-deformation and anti-impact, etc.
Performance indicators and specifications
| Performance Index | |||||
|---|---|---|---|---|---|
| GFP Plate Performance Index | Unit | Thickness | |||
| 10mm | 12mm | 15mm | |||
| Combustion performance | — | Class A | Class A | Class A | |
| Fracture load | Longitudinally | N | ≥716 | ≥885 | ≥1257 |
| Crosswise | N | ≥470 | ≥692 | ≥859 | |
| SHEARING force | N | ≥838 | ≥1001 | ≥1560 | |
| Water Absorption | % | ≤7 | ≤7 | ≤7 | |
| FORMALDEHYDE emission | — | No formaldehyde release | No formaldehyde release | No formaldehyde release | |
| NTERNAL EXPOSURE INDEX IRa | — | 0 | 0 | 0 | |
| External Exposure Index Ly | — | 0.1 | 0.1 | 0.1 | |
| Product specification | |||
|---|---|---|---|
| Long(mm) | Wide(mm) | Thickness(mm) | Area density(kg/m2) |
| 2400/2440 | 1200/1220 | 10.0 | ≥10 |
| 2400/2440 | 1200/1220 | 12.0 | ≥12.5 |
| 2400/2440 | 1200/1220 | 15.0 | ≥16 |
-
Gao Qiang’s grip

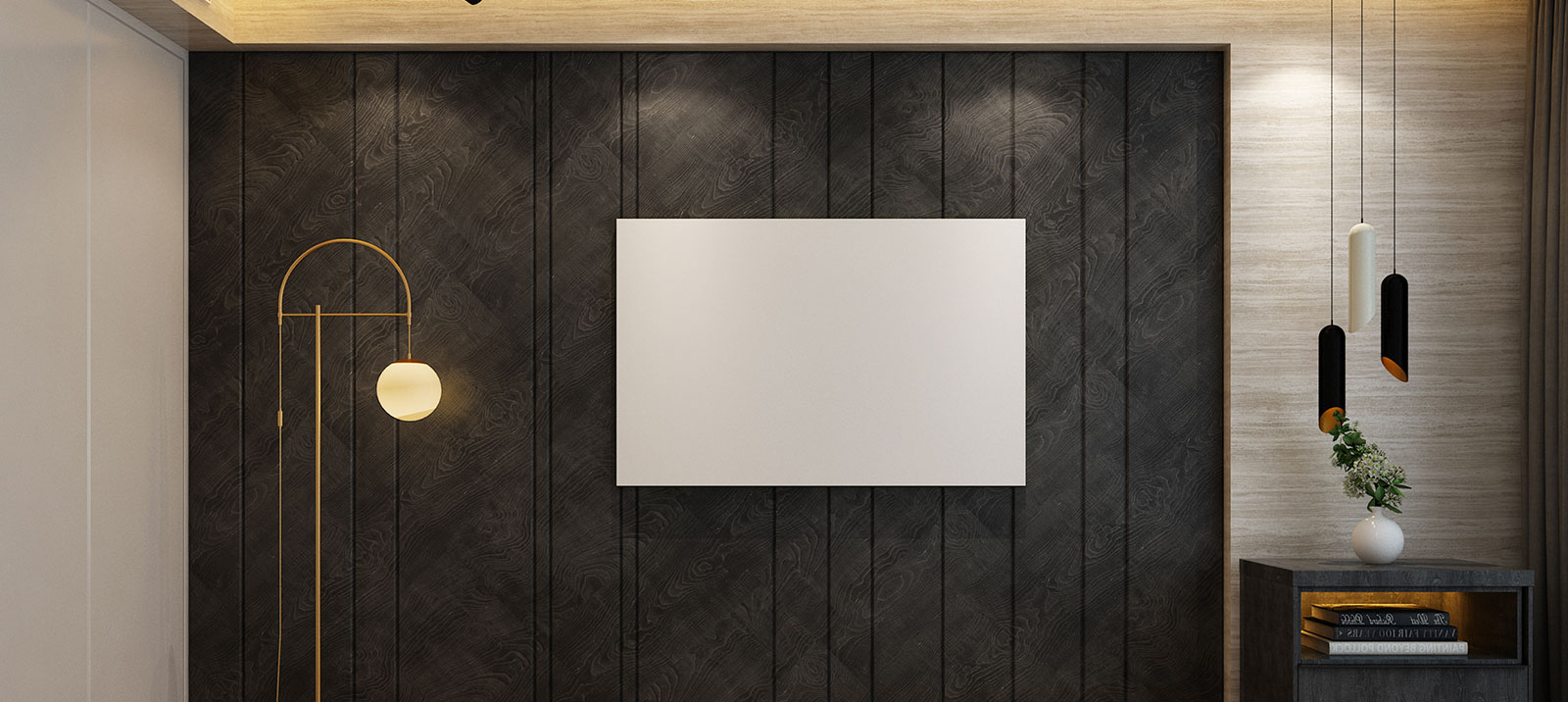

The product uses the Unique Gel hard board technology, has the high strength to hold the nail force, alone nail suspends the heavy object as high as 30 kilograms above, may nail to hang the television, the cabinet and so on the heavy object. -
Class A non-flammable
Class A NON-COMBUSTIBLE Board, Fire Stability & GT; 180Min, can meet the fire protection requirements of various places. -
High strength, impact resistant
High Strength Tissue Paper, High Strength Gypsum and Gao Qiang fiber reinforced materials through the Unique Gel hard board technology perfect combination, product strength, impact resistance. -
Low Expansion, anti-cracking deformation
The product has small expansion shrinkage, stable size and anti-cracking deformation. -
High density and sound insulation
The product density is high, sound insulation effect is remarkable. -
High environmental standards
The board does not contain any formaldehyde materials and any volatile harmful substances, is a gypsum-based high-performance Green Environmental Protection Board.
